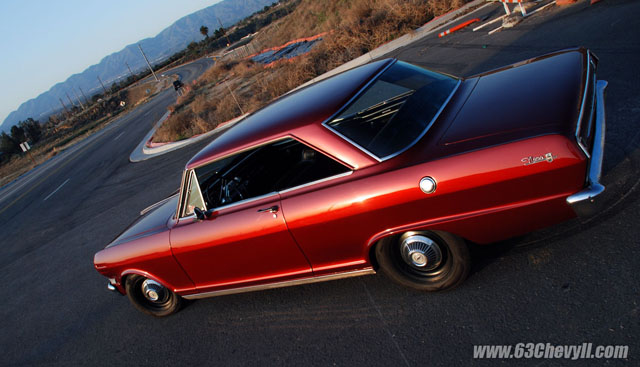

1963 Chevy II Nova

Thank you for visiting 63ChevyII.com. This site documents my progress as I restify (RESTore + modIFY) my 1963 Chevy II Nova. My plan is to keep a mostly stock appearance while upgrading the vehicle's running gear. My plans call for bodywork and paint, replacing most of the interior, an overdrive transmission (700R4), converting to disc brakes, a 5 lug rear end, lowering blocks, HEI (petronix) and a rebuilt engine (GM 292). This is my first project, so I'm sure many (more) mistakes will be made along the way.

If you have any questions regarding my car or Novas in general, please feel free to contact me by clicking here.

If you've found this site helpful, please consider buying the products we have available in the our store.
Nova Stickers, Chevy II Stickers, Decals, Wagon, Longroof Chevy

The Build:
  2011 (more...)

  • 292/700R4 install continues...
  2010 (more...)

  • 292 install is under way...
  • Prepping for 700R-4 Install
  2009 (more...)

  • CPP Mini-subframe, disc brakes, 5 lug rear end installed
  • Made decision on rims and still making decision on hub/center caps
  • Assessing the effectiveness of SEM carpet/vinyl dye
  2008 (more...)

  • Majority of Bodywork and Paint done
  • Prep work started for disc brake conversion and engine swap
  • Most of the interior was installed, along with temporary sound system
  • Tested insulation for sound and heat deadening
  My 1963 Chevy II -

  • A few pics I took between 2004 and the end of 2007, before the major work began

Summary of Completed Upgrades:
  Bodywork, Paint and Re-assembly

  • Bodywork (completed Dec '08)
  • Paint (completed Feb '08)
  Cooling System

  • Brass 2-Row Radiator with integrated transmission cooler
    • US Radiators part 010440ANH (installed May '10)
  • Water oulet housing spacer -allows use of Offy Valve Cover (installed Apr '10)
  • Universal Flex Fan
  • Waterpump Pulley
    • BBC pulley - smaller diameter, better damper pulley alignment (acquired May '10)
  Engine

  • 292 bored .30 over (acquired Dec 06)
  • Holley 390 CFM 4 barrel carb (acquired Dec 05)
    • Offenhauser Carb Linkage 5416
  • Engine Wiring Harness (acquired May 09)
  • Langdon's Stovebolt Castiron Headers for dual exhaust (acquired Oct 07)
  • Offenhauser 4 BBL Intake (acquired Dec 05)
  • 2 grove, 292 Harmonic Damper with custom offset
Fuel System

  • Holley Red Fuel Pump (acquired Oct '09)
  • 3/8" Stainless Steel Fuel Line (acquired Oct '09)
  • 3/8" Fuel pickup (acquired Apr '10)
  • New Gastank (acquired Oct '09)
  • Fuel Relay switch (acquired Oct '09)
Ignition

  • Petronix HEI Conversion
    • 7mm Plug Wires
    • Flamethrower II Coil
  Interior Upgrades

  • new upholstery (installed May '09)
  • misc interior items
    • headliner (installed Nov '09)
    • windlace (installed June '09)
    • seatbelts (installed May '08)
    • sun visor brackets (installed May '08)
    • sun visors (installed May '08)
  • Sound System (completed Aug 08)
    • CD Player in Glovebox (installed Aug '08)
    • Custom Kick Panels with speaker holes (installed July '08)
      • Speakers for kick panels (installed July '08)
    • Package tray with speaker holes (installed Aug 08)
      • Dual cone speaker for package tray (installed Aug '08)
  • Sound Deadening/Rust Prevention for all panels (completed May '08)
  Suspension Upgrades and Disc Brake Conversion (completed Oct '09)

  • CPP Mini Subframe Deluxe Kit (tubular upper and lower control arms)
  • CPP Power Disk Brakes
  • 5 lug rear end
  • 5 lug wheels
  • 1" lowering blocks
  • CPP Idler arm bearing conversion
Transmission

  • 700R4 with a mechanical speedo (acquired April '10)
  • CPP 700R4 Crossmember (acquired April '10)
  • 700R4 Shift Linkage (acquired July '10)
  • 700R4 TV Cable (acquired July '10)
  • Shortened Driveshaft
  • Lokar dipstick (acquired April '10)
  Wiring & Electrical Upgrades

  • New Engine Wiring Harness (acquired May '09)
  • 100 Amp, 1-wire Alternator
  • Added fuse blocks (fuel pump, gauges, torque converter clutch lockup switch, electric choke)
  • Added Relays (fuel pump, secondary fuse block)
  • Upgraded/replaced wiring - battery cables, ground wires, etc

Future Plans (as of Oct 2011):
  Interior Items

  • Arm rests
  • Arm rest bases
  • Door Panels
  Trim/Chrome

  • drip rail molding
  • re-chrome bumpers
